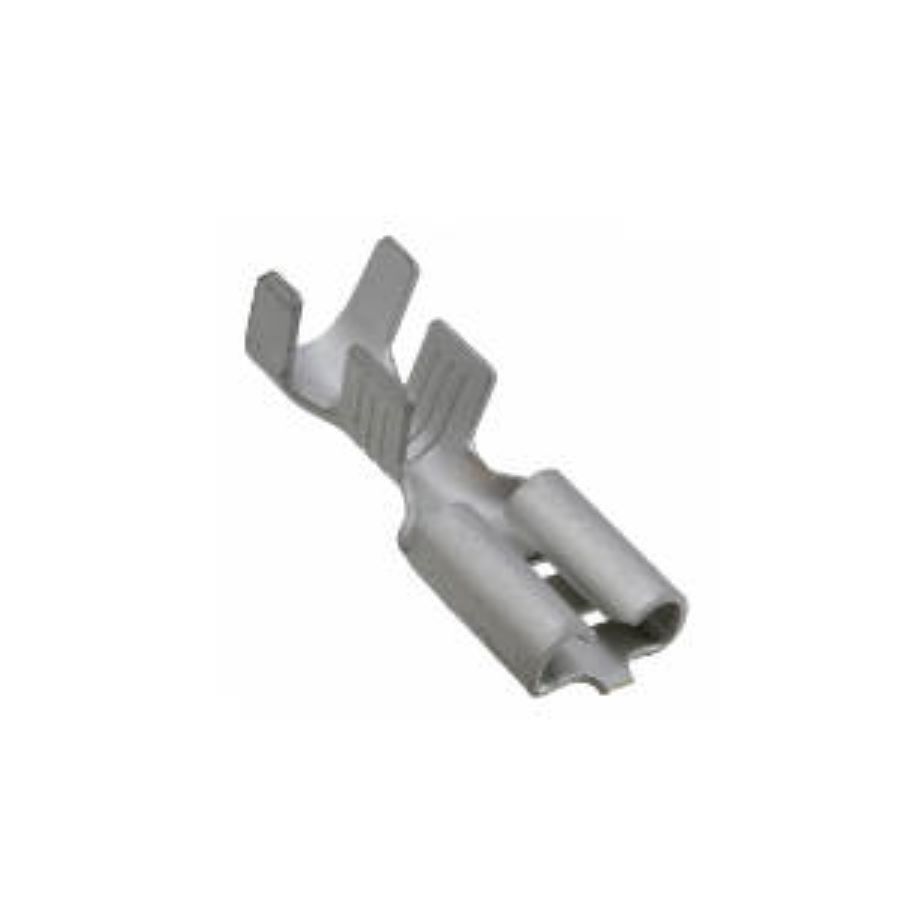

170224-2
Manufacturer:
TE Connectivity
Mfr.Part #:
170224-2
Datasheet:
Description:
Terminals Free Hanging 10 AWG Female
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Width | 7.6 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.6 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 5.0038 mm |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 15 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 5 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 7.7978 mm |
| Tab Thickness | 787.4 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 4679
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.11456 | $1.14560 |
| 50 | $0.10566 | $5.28300 |
| 100 | $0.09746 | $9.74600 |
| 500 | $0.09009 | $45.04500 |
| 1000 | $0.08327 | $83.27000 |
| 3000 | $0.07253 | $217.59000 |
| 5000 | $0.06318 | $315.90000 |
